Technical Datas
|
Working voltage |
Test voltage |
Thickness |
Width |
Length |
|
650 volts |
15000 volts |
3~6mm |
1~1.5m |
1~10m |
|
17000 volts |
20000 volts |
3~10mm |
1~1.5m |
1~10m |
|
26500 volts |
30000 volts |
6~12mm |
1~1.5m |
1~10m |
|
36000 volts |
40000 volts |
10~20mm |
1~1.5m |
1~10m |
|
Color |
Black, Green, Red, Blue |
|
Hardness |
65+/-5 ShoreA,
75+/-5 ShoreA |
|
Temperature range |
-35℃ to 100 ℃ |
|
Surface |
Smooth or cloth wave |
Property

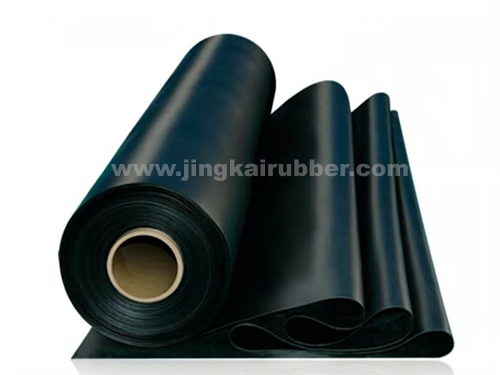

Insulation Rubber Sheet with good physical mechanical character & insulation property. Working in the environment with the high requirement of the electrical modulus at the temperature of -35℃~+100℃ in the dry air.
Package
Application
The insulated rubber sheet can be used on the work table or paved floor in power distribution stations, substations, or other places easy to have electric shock.
Value added services

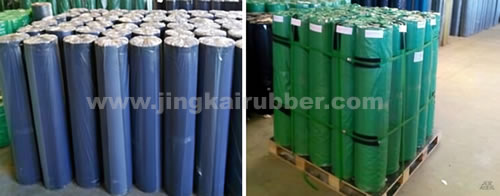

1. Package --- Packed in the plastic film then by Polywoven Bag or loaded onto the pallets (according to the customers' requirements).
2. We can cut the rubber sheets into precise width or lengths by utilize flywheel and on-demand cutters to meet customers' requirements.
3. Pallet: We can buy Non-fumigation pallets with the IPPC mark and European Standard pallets for customers. We also can provide Packing Declearance, which will work for Australian, European countries.
|
